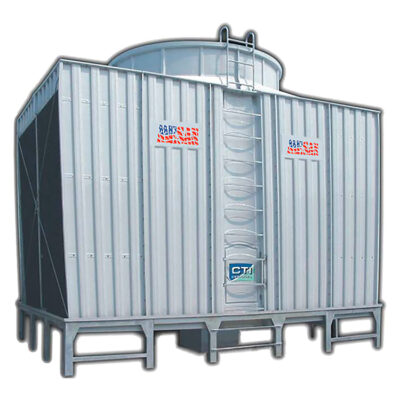

The “flagship” of MESAN’s product line-up, the MXR-KM series is a cross-flow, induced-draft cooling tower engineered for lowest energy consumption and longest trouble-free service life.
Each one of the 220 models in this series is CTI certified as per STD-201.
All models in this series are also fully ASHRAE-90.1 2010 compliant with efficiency ratios above 60 gpm/HP (up to 120 on certain sizes), largely exceeding this standard’s threshold of 38.2 gpm/HP, which makes the MXR-KM series an ideal solution for building owners and designers, looking for Green Building status for their projects.
Unique standard features, like single- inlet self-balancing piping connection (from sizes “A” to “E”), nozzle-less water distribution, layered fill, self-supporting FRP casing without internal metal structure, ANSI-125 flanges, and double coat of UV-resistant white gelcoat, sealed speed reducers with bearings rated for L10-80,000 hours, all contribute to a reliable, easy to install, cost competitive, excellent tower.
Available in FRP, G-235 Hot-dipped galvanized steel and SS-304 or SS-316 stainless steel, or any combination of these materials.
